Standard Duty 513 514 Chrome Steel Ball Bearings

Product Categories
Fuzhou Zoomland Import and Export Trade Co.,Ltd
Contact Now

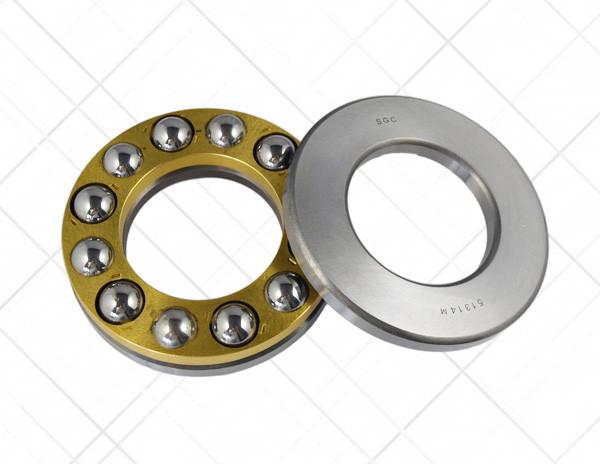

Standard Duty 513 514 Chrome Steel Ball Bearings

  • 1
  • 2
  • 3

Brand Name : SGC

Model Number : 513, 514 Series

Place of Origin : Fuzhou, China

MOQ : 10 PCS

Price : Get the latest price

Payment Terms : D/P, L/C, T/T, Western Union

Supply Ability : 200000PCS per month

Delivery Time : 10-30 days

Packaging Details : Neutral Pack+Outer Carton+Pallet

Product name : Thrust Ball Bearing

Number of row : Single Row

Materials : GCr15 Chrome Steel

Cage : Hardened steel, Nylon, and Brass Cage Optional

Lubrication : Oil

Hardenedness : HRC60~65

Balls : G5, G10, G16

Bore size : 10mm - 400mm

Outside diameter : 24mm - 480mm

Service : OEM Customized Services

Feature : Long Life,High Load

Package : Industrial Packing

Sample : available

Contact Now

Chrome Steel Trust Bearings with Black Chamfer for mining metallurgy petrol machinery 513/514 Series

Standard-Duty Type

Features:

• Low speed;

• High load capacity;
• Optional Steel, Nylon, and Brass cage.

Applications:

The trust ball bearing is applying for heavy axial load equipment, such as mining, metallurgy, petrol, mechanical industries.

Product Tags:

513 514 Chrome Steel Ball Bearings



513 514 Chrome Steel Thrust Bearings



513 514 Series Chrome Steel Ball Bearings


Bearing No. Boundary Dimension(mm) Basic load rating
(KN)		 Limiting Speed
(rpm)		 Mass
(kg)
d D T Dynamic Cr Static Cor Grease Oil
51100 10 24 9 10 14 6500 10000 0.02
51200 26 11 12.7 17.1 5700 8800 0.03
51101 12 26 9 10.3 15.4 6500 10000 0.022
51201 28 11 13.2 19 5400 8300 0.034
51102 15 28 9 10.5 16.8 6100 9400 0.024
51202 32 12 16.6 24.8 4900 7500 0.046
51103 17 30 9 10.8 18.2 5300 7500 0.024
51203 35 12 17 27.2 4500 6300 0.048
51104 20 35 10 14.2 24.5 4800 6700 0.036
51204 40 14 22.2 37.5 3800 5300 0.075
51105 25 42 11 15.2 30.2 4300 6000 0.055
51205 47 15 27.8 50.5 3400 4800 0.11
51305 52 18 35.5 61.5 3000 3400 0.17
51405 60 24 55.5 89.2 2200 5600 0.31
51106 30 47 11 16 34.2 4000 4500 0.062
51206 52 16 28 54.2 3200 3600 0.13
51306 60 21 42.8 78.5 2400 3000 0.26
51406 70 28 72.5 125 1900 5300 0.51
51107 35 52 12 18.2 41.5 3800 4000 0.077
51207 62 18 39.2 78.2 2800 3200 0.21
51307 68 24 55.2 105 2000 2600 0.37
51407 80 32 86.8 155 1700 4800 0.76
51108 40 60 13 26.8 62.8 3400 3600 0.11
51208 68 19 47 98.2 2400 3000 0.26
51308 78 26 69.2 135 19000 2200 0.53
51408 90 36 112 205 1500 4500 1.06
51109 45 65 14 27 66 3200 3400 0.14
51209 73 20 47.8 105 2200 2600 0.3
51309 85 28 75.8 150 1700 2000 0.66
51409 100 39 140 262 1400 4300 1.41
51110 50 70 14 27.2 69.2 3000 3200 0.15
51210 78 22 48.5 112 2000 2400 0.37
51310 95 31 96.5 202 1600 1900 0.92
51410 110 43 160 302 1300 4000 1.86
51111 55 78 16 33.8 89.2 2800 4000 0.22
51211 90 25 67.5 158 1900 3000 0.58
51311 105 35 115 242 1500 2200 1.28
51411 120 48 182 355 1100 1700 2.51
51112 60 85 17 40.2 108 2600 3800 0.27
51212 95 26 73.5 178 1800 2800 0.66
51312 110 35 118 262 1400 2000 1.37
51412 130 51 200 395 1000 1600 3.08
51113 65 90 18 40.5 112 2400 3600 0.31
51213 100 27 74.8 188 1700 2600 0.72
51313 115 36 115 262 1300 1900 1.48
51413 140 56 215 448 900 1400 3.91
51114 70 95 18 40.8 115 2200 3400 0.33
51214 105 27 73.5 188 1600 2400 0.75
51314 125 40 148 340 1200 1800 1.98
51414 150 60 255 560 850 1300 4.85
51115 75 100 19 48.2 140 2000 3200 0.38
51215 110
