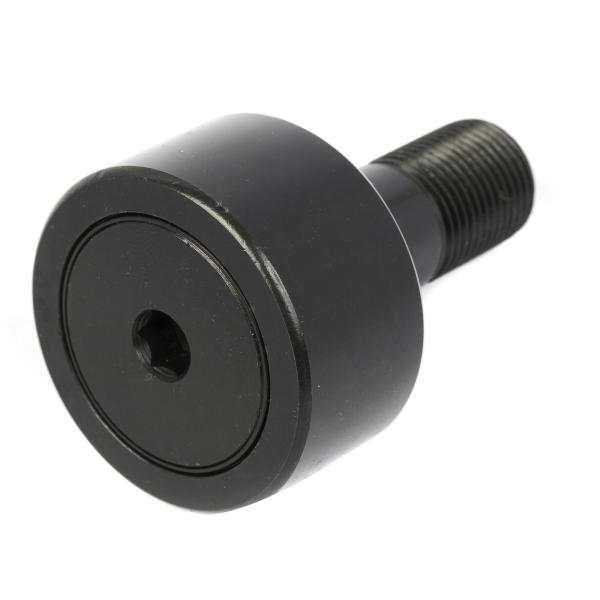

12.7mm Grease Lubrication CR Stud Track Roller

  • 1
  • 2

Brand Name : SGC

Model Number : CR

Certification : ISO9001

Place of Origin : Fuzhou, China

MOQ : 50 PCS

Price : Get the latest price

Payment Terms : D/P, L/C, T/T, Western Union

Supply Ability : 50000PCS per month

Delivery Time : 10-30 days

Packaging Details : Neutral Pack+Outer Carton+Pallet

Product Name : Stud-Type Cam Followers

Type : Stud-Type

Rollers : GCr15 Chrome Steel, Hardened , Precision Ground

Races : GCr15 Chrome Steel, Hardened , Precision Ground

Main Body : Chromoly Hardened Steel

Cage : Steel Cage, Nylon Cage optional

Surface Treatment : Chromoly Heat Treated, or Black Coated Optional

Lubrication : Grease

Hardenedness : HRC60~65

Shaft Dia. : 12.70 mm - 57.15 mm

Packing : 1*1 Plastic Bag+Box+Outer Carton, or according to requirement

Service : OEM Or Customized Drawings is Available

Samples : Free

Contact Now

Stud Type Track Roller with Black Oxide Coated Corrosion Resistance CR Series

Stud Type-Inch

Materials:

• 52100 Hardened Chrome Steel Needle Bearing

• 52100 Hardened Chrome Steel Outer Ring

• Hardened Steel Chromed Main Body

Features:

• The bearing has heavy duty radial and axial play.

• The bearing has better impact resistance, corrosion resistance, and wear resistance.
Note:

• Self-Lubrication, or with greasing nipple optional.

• Chromoly hardened treatment, or black Oxide coated optional.

• Stainless Steel is available.

Shaft Dia Bearing Number


Net

Weight
Boundary Dimensions


Basic Load

Rating


Limiting

Speed
d D Thread C B1 B G1 g1 Dynamic
Cr		 Static
Cor
Cylindrical Spherical UNF Grease
mm g inch N rpm
12.7 CR 8UU CR 8UUR 9 　 1/2. 10-32 11/32 3/8. 7/8. 1/4. 1/8. 260 220 28000
CR8-1UU CR8-1UUR 10 　 1/2. 3/8. 13/32 1 1/32 260 220 28000
15.875 CR10UU CR10UUR 19 1/4. 5/8. 1/4''-28 13/32 7/16. 1 1/16 5/16. 1/8. 370 370 21000
CR10-1UU CR10-1UUR 21 1/4. 5/8. 7/16. 15/32 1 7/32 370 370 21000
19.05 CR12UU CR12UUR 35 3/8. 3/4. 3/8''-24 1/2. 17/32 1 13/32 3/8. 3/16. 450 520 15000
22.225 CR14UU CR14UUR 46 3/8. 7/8. 490 590 14000
25.4 CR16UU CR16UUR 73 7/16. 1 7/16''-20 5/8. 21/32 1 21/32 1/2. 3/16. 900 1100 13000
28.575 CR18UU CR18UUR 88 7/16. 1 1/8 940 1180 12000
31.75 CR20UU CR20UUR 132 1/2. 1 1/4 1/2''-20 3/4. 25/32 2 1/32 5/8. 3/16. 1450 1630 11000
34.925 CR22UU CR22UUR 157 1/2. 1 3/8 1450 1630 11000
38.1 CR24UU CR24UUR 225 5/8. 1 1/2 5/8''-18 7/8. 29/32 2 13/32 3/4. 3/16. 1890 2470 8500
41.275 CR26UU CR26UUR 260 5/8. 1 5/8 1890 2470 8500
44.45 CR28UU CR28UUR 365 3/4. 1 3/4 3/4''-16 1 1 1/32 2 25/32 7/8. 3/16. 2560 3900 7000
47.625 CR30UU CR30UUR 410 3/4. 1 7/8 2560 3900 7000
50.8 CR32UU CR32UUR 615 7/8. 2 7/8''-14 1 1/4 1 9/32 3 9/32 1 3/16. 3310 6510 5500
57.15 CR36UU CR36UUR 750 7/8. 2 1/4 3310 6510 5500
