HRC 60 Yoke Type Track Roller

Product Categories
Fuzhou Zoomland Import and Export Trade Co.,Ltd
Contact Now

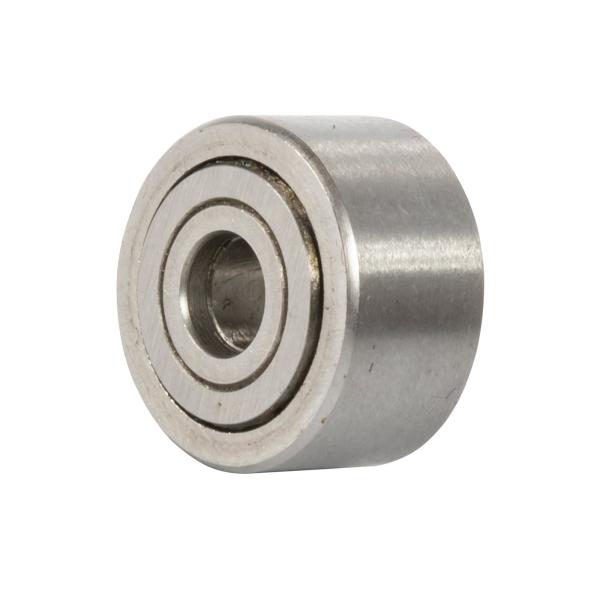

HRC 60 Yoke Type Track Roller

  • 1
  • 2
  • 3

Brand Name : SGC

Model Number : (R)STO

Certification : ISO9001

Place of Origin : Fuzhou, China

MOQ : 10 PCS

Price : Get the latest price

Payment Terms : D/P, L/C, T/T, Western Union

Supply Ability : 50000PCS per month

Delivery Time : 10-30 days

Packaging Details : Neutral Pack+Outer Carton+Pallet

Product Name : Yoke-Type Cam Followers

Type : Yoke-Type

Rollers : GCr15 Chrome Steel, Hardened , Precision Ground

Races : GCr15 Chrome Steel, Hardened , Precision Ground

Cage : Steel Cage, Nylon Cage optional

Surface Treatment : Chromoly Heat Treated, or Black Coated Optional

Lubrication : Grease

Hardenedness : HRC60~65

Outer Dia. : 16 mm - 90 mm

Packing : 1*1 Plastic Bag+Box+Outer Carton, or according to requirement

Service : OEM Or Customized Drawings is Available

Samples : Free

Contact Now

Yoke Type Track Roller Needle Bearings with or Without Inner Ring RSTO/STO Series

Yoke-Type-Metric

Materials:

• 52100 Hardened Chrome Steel Needle Bearing

• 52100 Hardened Chrome Steel Outer Ring

Features:

• The bearing has heavy duty radial and axial play.

• The bearing has better impact resistance, corrosion resistance, and wear resistance.
Note:

• Chromoly hardened treatment, or black coated optional.

• Stainless Steel is available.

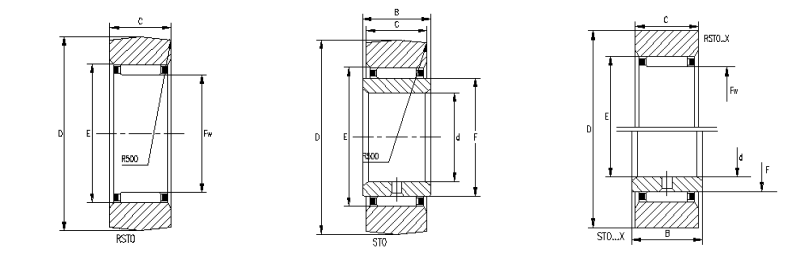

Outside

Diameter


Bearing No. & Mass Approx.
Boundary Dimensions
Basic Load Rating


Limiting

Speed
Without IR
Mass
With IR
Mass		 D d

FW		 B C E Cr
Dynamic		 Cor
Static		 Grease
mm g g mm N rpm
16 RSTO 5 TN 8.5 -- -- 16 -- 7 -- 7.8 10 2800 2600 23000
RSTO 5 TN X 8.5 -- -- 16 -- 7 -- 7.8 10 2800 2600 23000
19 RSTO 6 TN 12.5 STO 6 TN 17 19 6 10 10 9.8 13 4700 5450 20000
RSTO 6 TN X 12.5 STO 6 TN X 17 19 6 10 10 9.8 13 4700 5450 20000
24 RSTO 8 TN 21 STO 8 TN 26 24 8 12 10 9.8 15 4800 6000 16000
RSTO 8 TN X 21 STO 8 TN 26 24 8 12 10 9.8 15 4800 6000 16000
30 RSTO 10 42 STO 10 49 30 10 14 12 11.8 20 10200 10500 11000
RSTO 10 X 42 STO 10 X 49 30 10 14 12 11.8 20 10200 10500 11000
32 RSTO 12 49 STO 12 57 32 12 16 12 11.8 22 11300 12300 9000
RSTO 12 X 49 STO 12 X 57 32 12 16 12 11.8 22 11300 12300 9000
35 RSTO 15 50 STO 15 63 35 15 20 12 11.8 26 13200 16000 6500
RSTO 15 X 50 STO 15 X 63 35 15 20 12 11.8 26 13200 16000 6500
40 RSTO 17 88 STO 17 107 40 17 22 16 15.8 29 19800 25300 5500
RSTO 17 X 88 STO 17 X 107 40 17 22 16 15.8 29 19800 25300 5500
47 RSTO 20 130 STO 20 152 47 20 25 16 15.8 32 20800 27800 4700
RSTO 20 X 130 STO 20 X 152 47 20 25 16 15.8 32 20800 27800 4700
52 RSTO 25 150 STO 25 177 52 25 30 16 15.8 37 23000 33400 3600
RSTO 25 X 150 STO 25 X 177 52 25 30 16 15.8 37 23000 33400 3600
62 RSTO 30 255 STO 30 308 62 30 38 20 19.8 46 35200 56700 2500
RSTO 30 X 255 STO 30 X 308 62 30 38 20 19.8 46 33200 56700 2500
72 RSTO 35 375 STO 35 441 72 35 42 20 19.8 50 35800 58800 2200
RSTO 35 X 375 STO 35 X 441 72 35 42 20 19.8 50 35800 58800 2200
80 RSTO 40 420 STO 40 530 80 40 50 20 19.8 58 35200 61800 1700
RSTO 40 X 420 STO 40 X 530 80 40 50 20 19.8 58 35200 61800 1700
85 RSTO 45 453 STO 45 576 85 45 55 20 19.8 63 38900 73900 1500
RSTO 45 X 453 STO 45 X 576 85 45 55 20 19.8 63 38900 73900 1500
90 RSTO 50 481 STO 50 617 90 50 60 20 19.8 68 43300 84800 1300
RSTO 50 X 481 STO 50 X 617 90 50 60 20 19.8 68 43300 84800 1300

HRC 60 Yoke Type Track Roller

HRC 60 Yoke Type Track Roller
